VDB provision UI

Users can provision VDBs from the DCT UI using the Provision VDB button located under the action button on a VDB details page. The following DBMS types and configurations are supported:

  • Oracle Single Instance

  • Oracle Multitenant (linked CDBs only)

  • MSSQL Single Instance

Extending the developer experience capabilities in DCT, users can now provision MSSQL single instance databases or Oracle single instance multi-tenant databases with linked CDB data platforms from the user interface, using an intuitive wizard workflow. Located on the VDB page is a Provision VDB button that opens the provisioning wizard. (Note: non admin users will only be able to see provisionable sources (dsources and/or VDBs), environments, and engines to which they are authorized to see and act upon).

The provisioning wizard will walk through the following steps:

  • Source: search and select either a dSource or VDB to provision from.

  • Provision Point: three options for a provision point, similar to a refresh point.

    • A selected snapshot

    • A specific timestamp (closest snapshot to the timestamp)

    • A location ID/number (closest snapshot to the location number)

  • Target Environment: shows compatible environments with compatible repositories, and can optionally provide privileged credentials.

  • Target Configuration: should be prefilled with default configurations. One thing to note here are the tags which are additive when “Include Tags from Parent” is checked, and you wouldn’t immediately see the tags from the parent in the editor. Tags are added when the Include Tags from Parent box is checked, you would not immediately see them from the parent in the editor.

    • Users can also select the engine group and register listeners by expanding the advanced section below. In DCT, it is recommended to use tags instead of engine groups.

  • Policies: choose a snapshot policy.

  • Summary: review the selections that have been made.

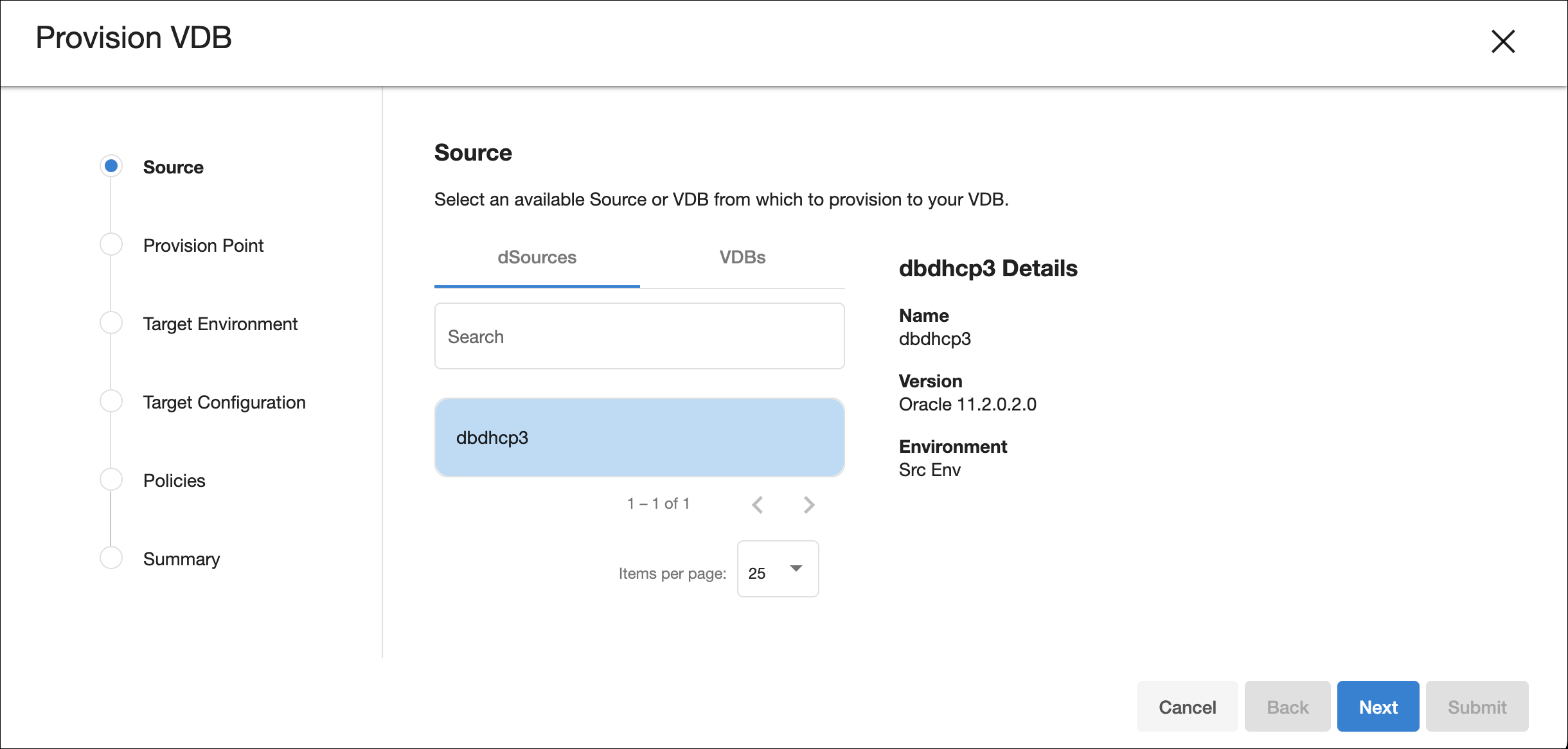

The below example walks through a provisioning workflow for an Oracle 11.2 Multitenant VDB (Note: TDE and Auto VDB restart are supported only for Oracle version 12.2 or higher).
