Adding an Oracle Staging Push dSource

This page outlines the process for adding an Oracle Staging Push dSource within Delphix Data Control Tower (DCT). This functionality is crucial for managing Oracle databases, particularly in environments where staging operations are pushed to target engines. Integrate Oracle Staging Push dSources into your DCT setup by following the Linking Wizard steps.

Prerequisites

Ensure that a target engine, with the source backup already cloned, is registered in the DCT before beginning the linking process.

Linking process

dSource Type step

  1. Select dSource type: Begin the dSource Linking Wizard and choose the 'Oracle Staging Push' option.

  2. Target engine selection: From the engine dropdown, select the desired target engine where the source backup is located.

dSource Configuration step

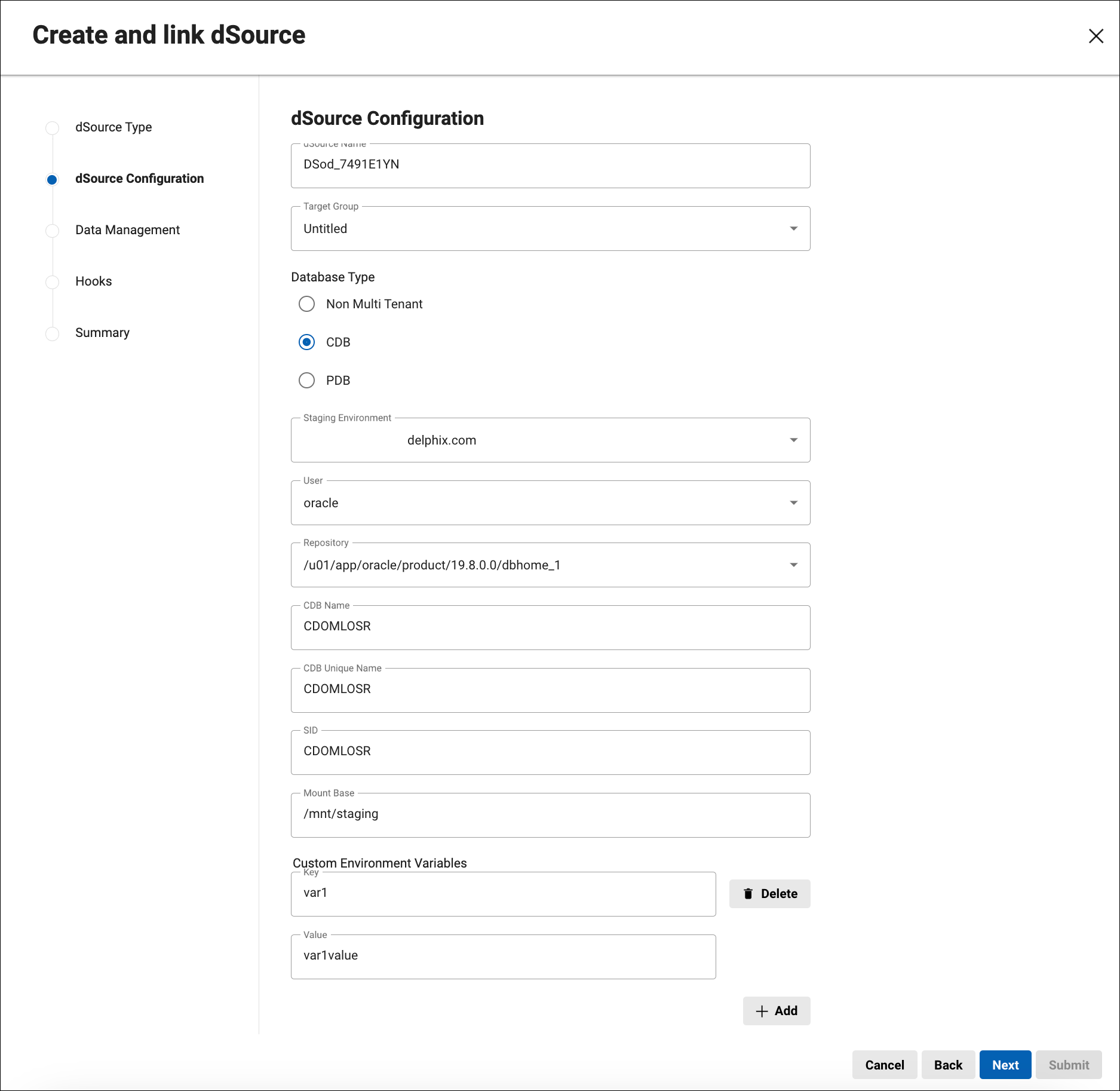

  • Select dSource configuration: Depending on the type of Oracle database (CDB, PDB, or single tenant), select the appropriate dSource configuration.

  • Database details: Based on the previous selection, enter the necessary details that would appear as shown in the screenshot below.

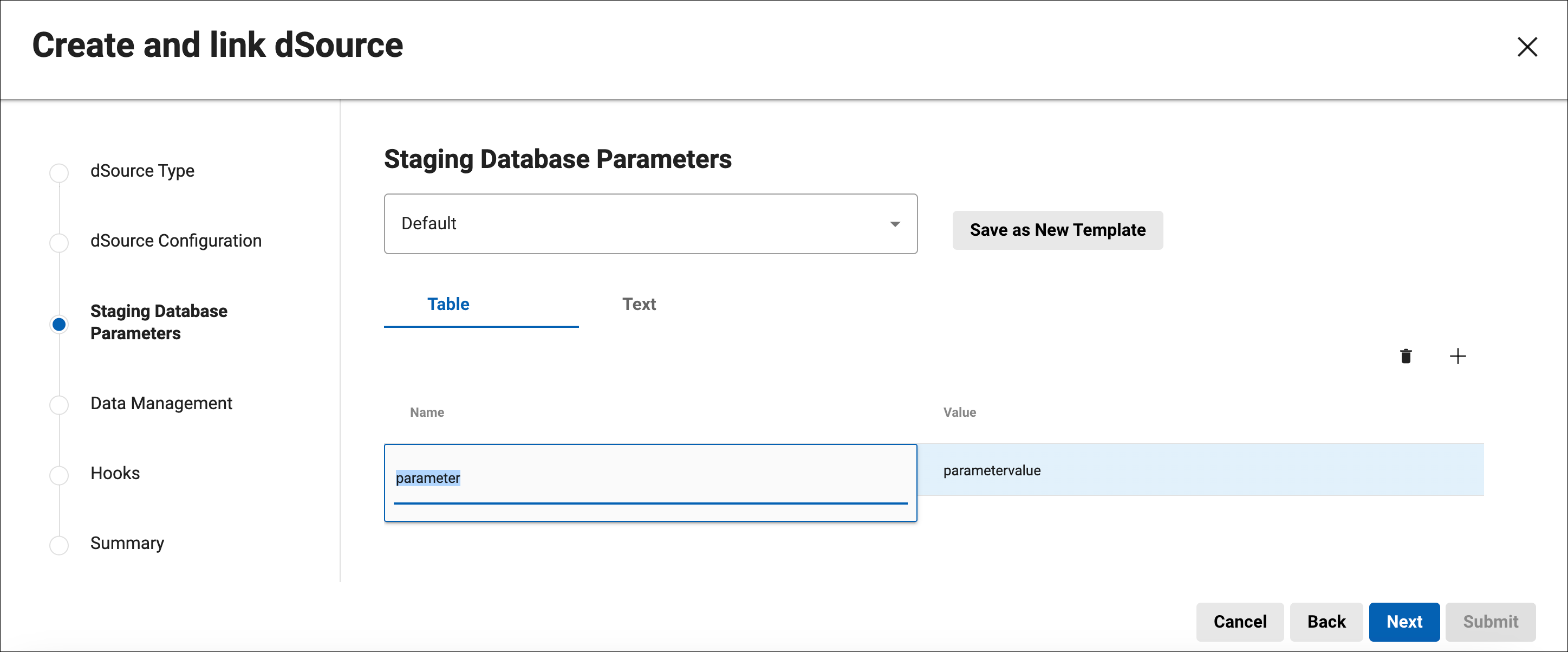

  • Staging database parameters: An option to configure Staging Database Parameters is available. If selected, it adds a new step for entering these parameters.


Data Management step

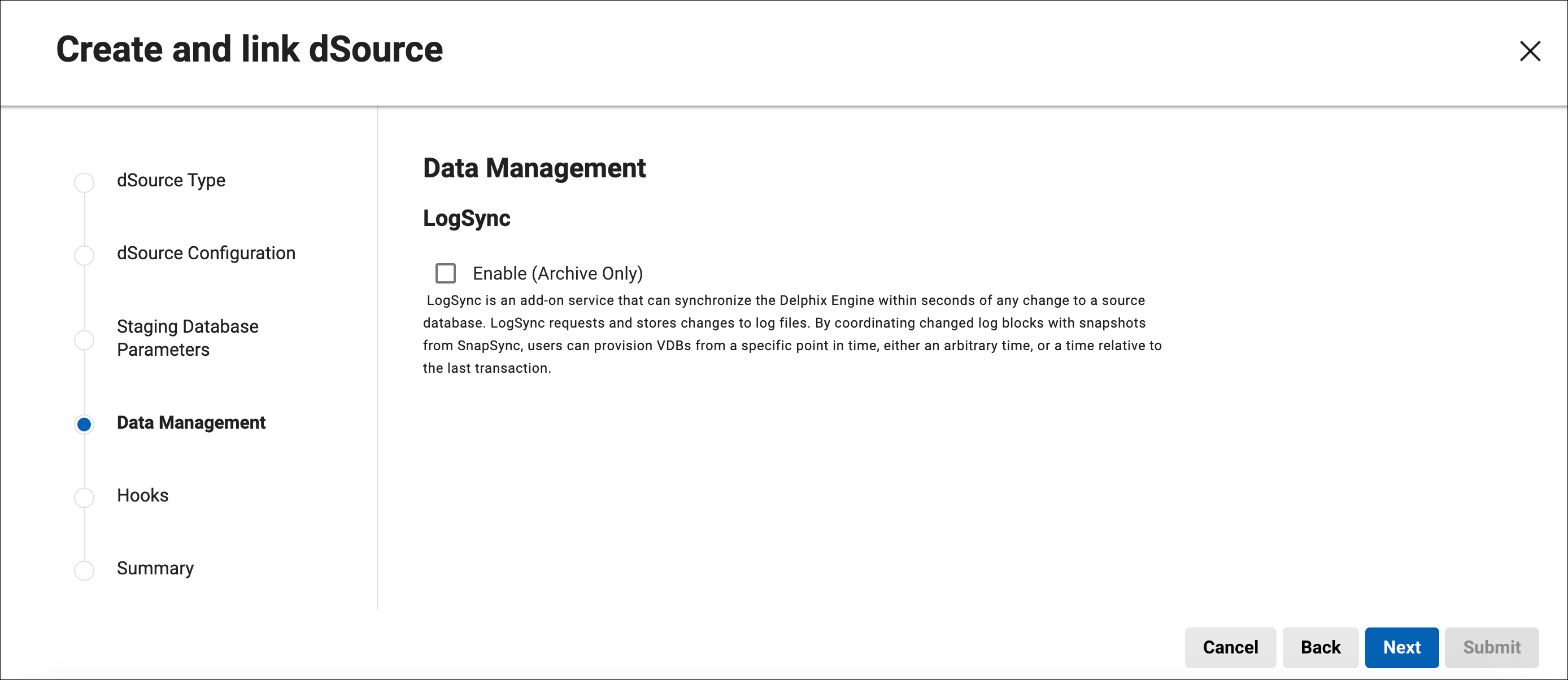

  • Enable LogSync: This step involves the option to enable log synchronization for real-time data updates and management.


Summary step

  • Review configuration: Examine the details of the summary, which includes information about the dSource type, target engine, database details, and any additional parameters set in the previous steps, to ensure all configurations are correct and aligned with the requirements of the Oracle Staging Push dSource.

Completion

Upon confirming and submitting the details in the Summary step in the Linking Wizard, the process of creating an Oracle Staging Push dSource is initiated. The new dSource will be integrated into the DCT environment and will be available for use once the setup is complete.
