VDB Groups

Overview

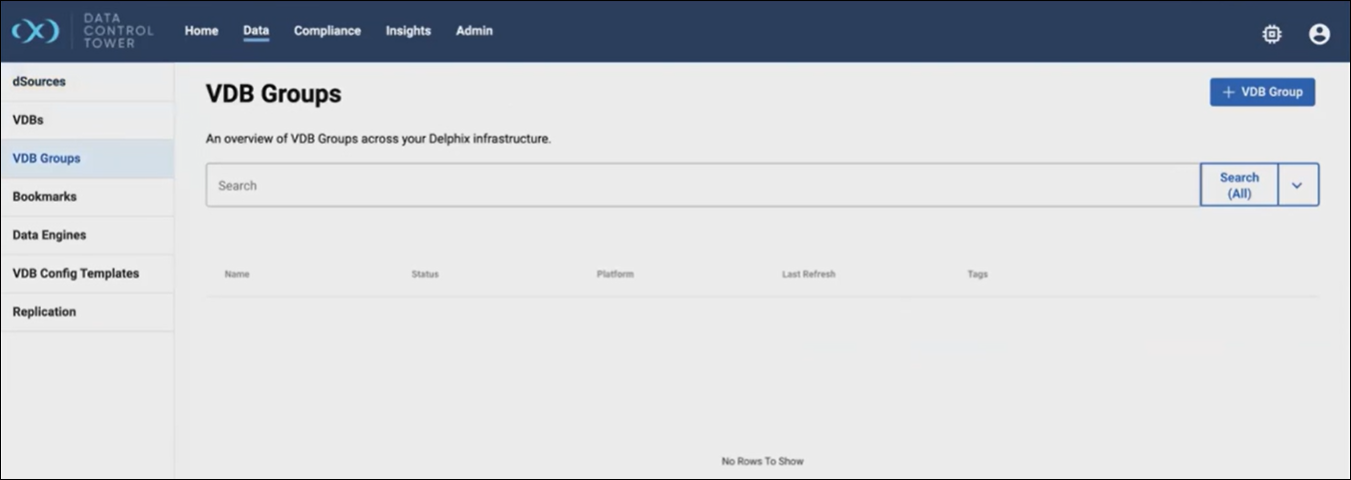

VDB Groups introduce a new functionality that allows users to organize and manage VDBs in a comprehensive listing page, accessible under the Data tab in DCT version 20.0.0 and above.


Creating a VDB Group

The creation of a VDB Group is facilitated through a three-step wizard:

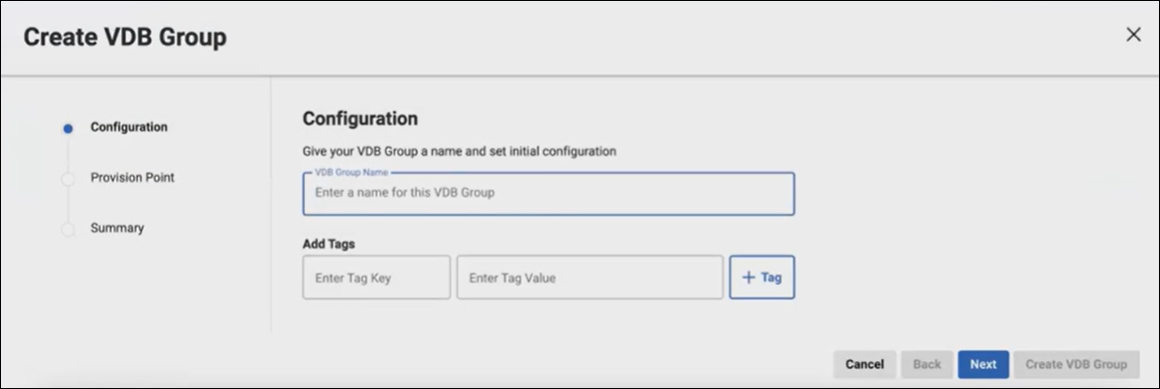

  1. Configuration

    • Add identifying details for the VDB group, including Name and Tags.

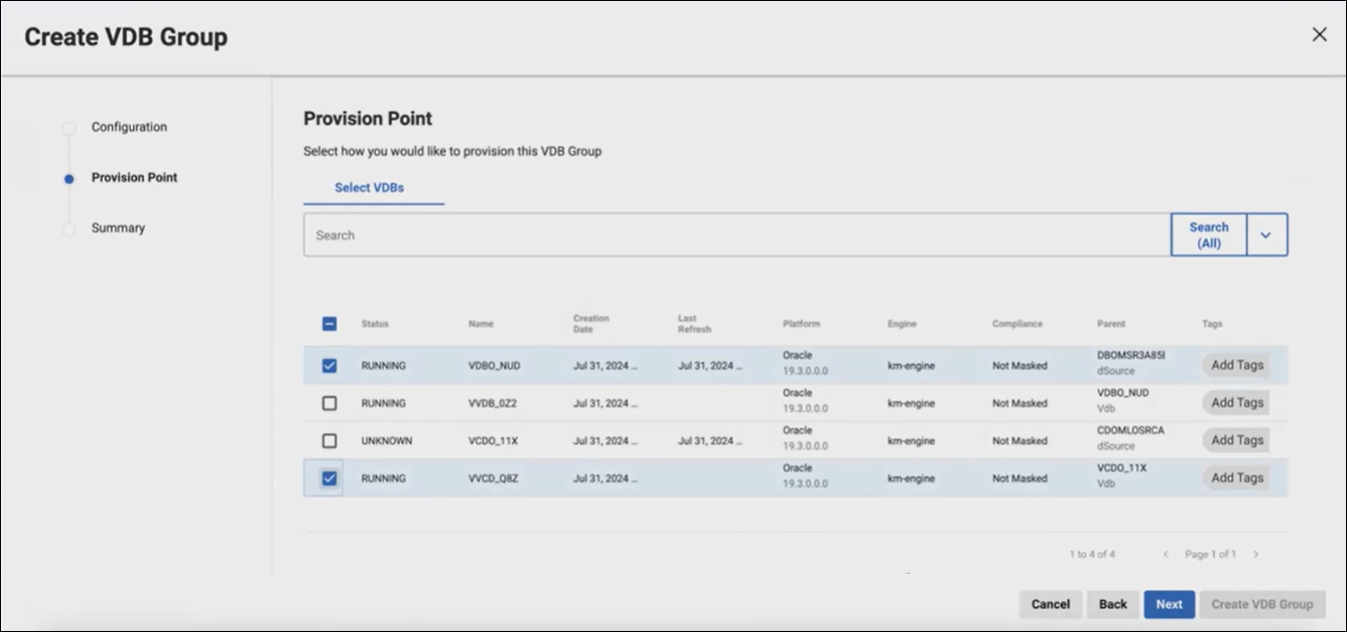

  2. Provision Point

    • Select one or multiple VDBs to include in the group based on user needs.

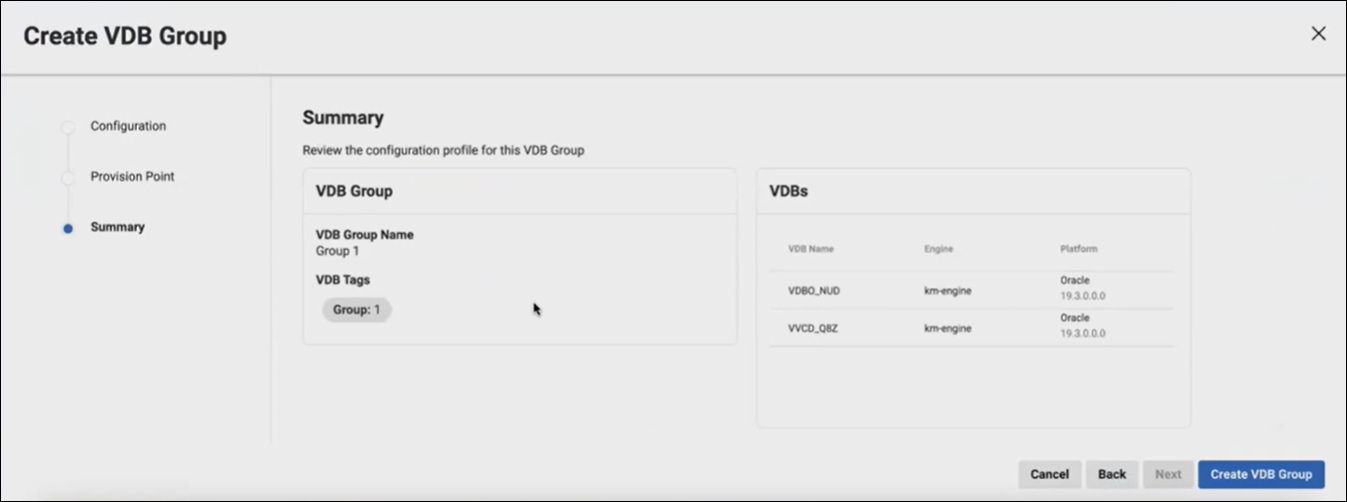

  3. Summary

    • Review the configurations and click Save VDB Group to finalize the creation process.

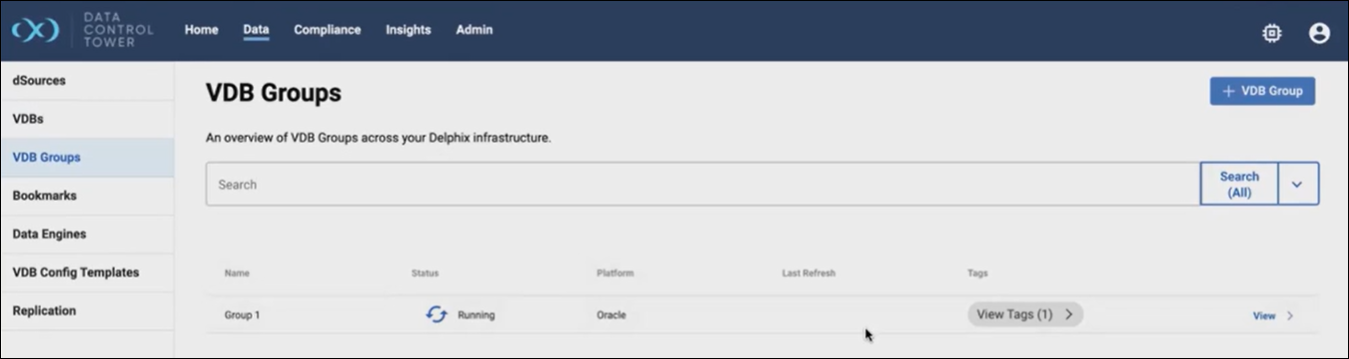

Viewing and managing VDB Groups

Once created, VDB Groups are displayed in a list with several columns of information:

  • Name

  • Status

  • Platform

  • Last Refresh

  • Tags

Users can select the View button from the group list to open the details page of the selected VDB Group.


VDB Group detail page

The detail page for each VDB Group includes two tabs:

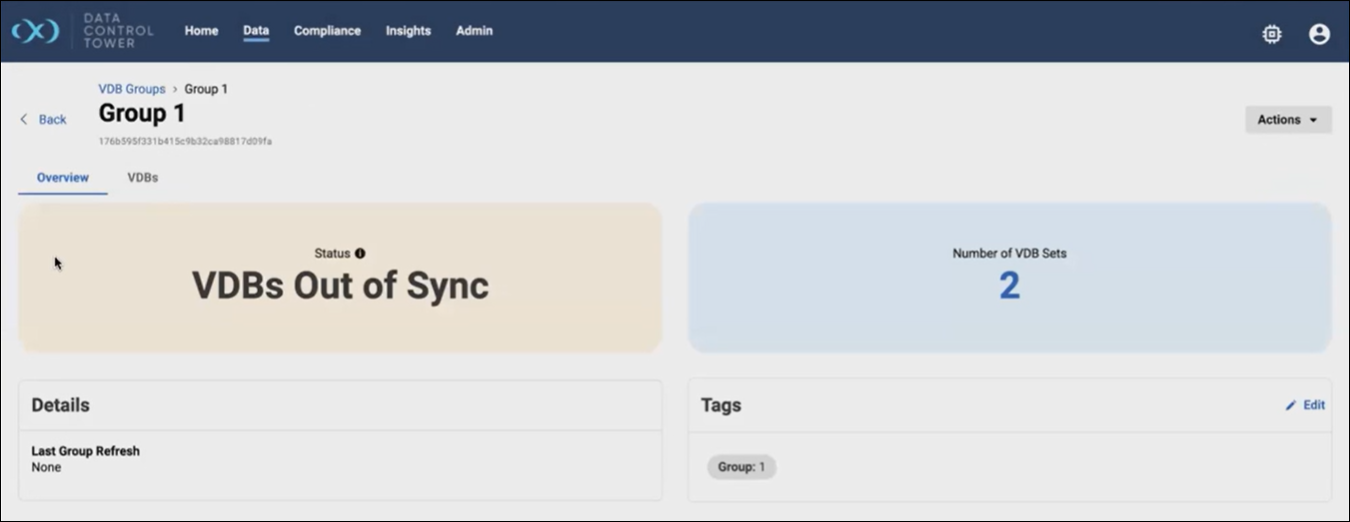

  1. Overview tab

    • Status: Displays the status of each VDB within the group.

    • Number of VDB sets: Indicates the number of VDB sets.

    • Details: Includes information such as Last Refresh and Tags.

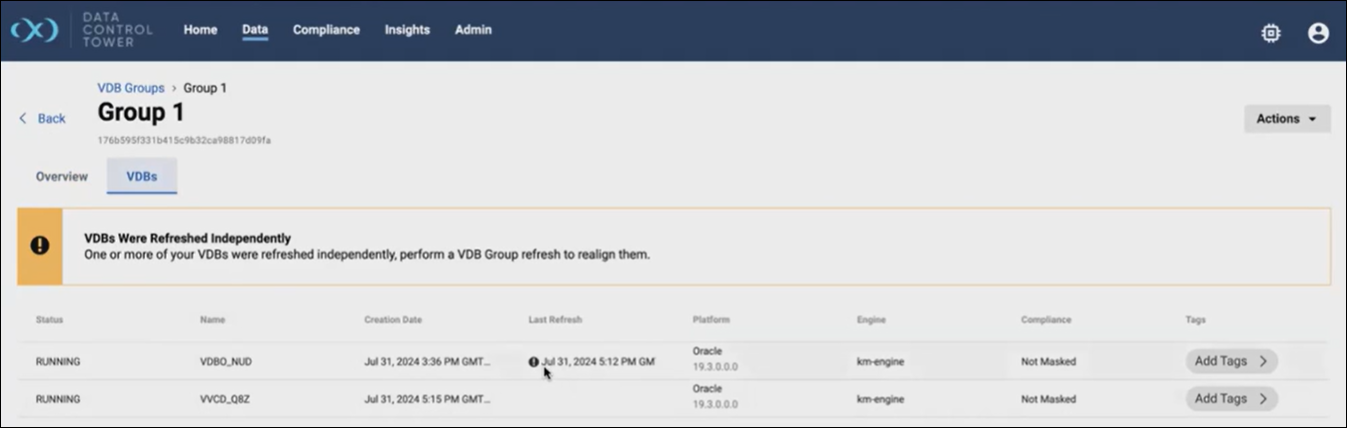

  2. VDBs Tab

    • Displays the VDBs that are part of the VDB Group, with the following columns of information:

      • Status

      • Name

      • Creation Date

      • Last Refresh

      • Platform

      • Engine

      • Compliance

      • Tags


The Actions menu in the top corner of this page has a Delete option, if the VDB Group should be removed.
