Replica insights
Overview
DCT 20.0.0 introduces new replication insights, such as the replication policy list of an engine and a detailed view of a replica, in addition to failback support.
A source and target engine connected to DCT with one or more replication profiles.
Replication policy list of an engine

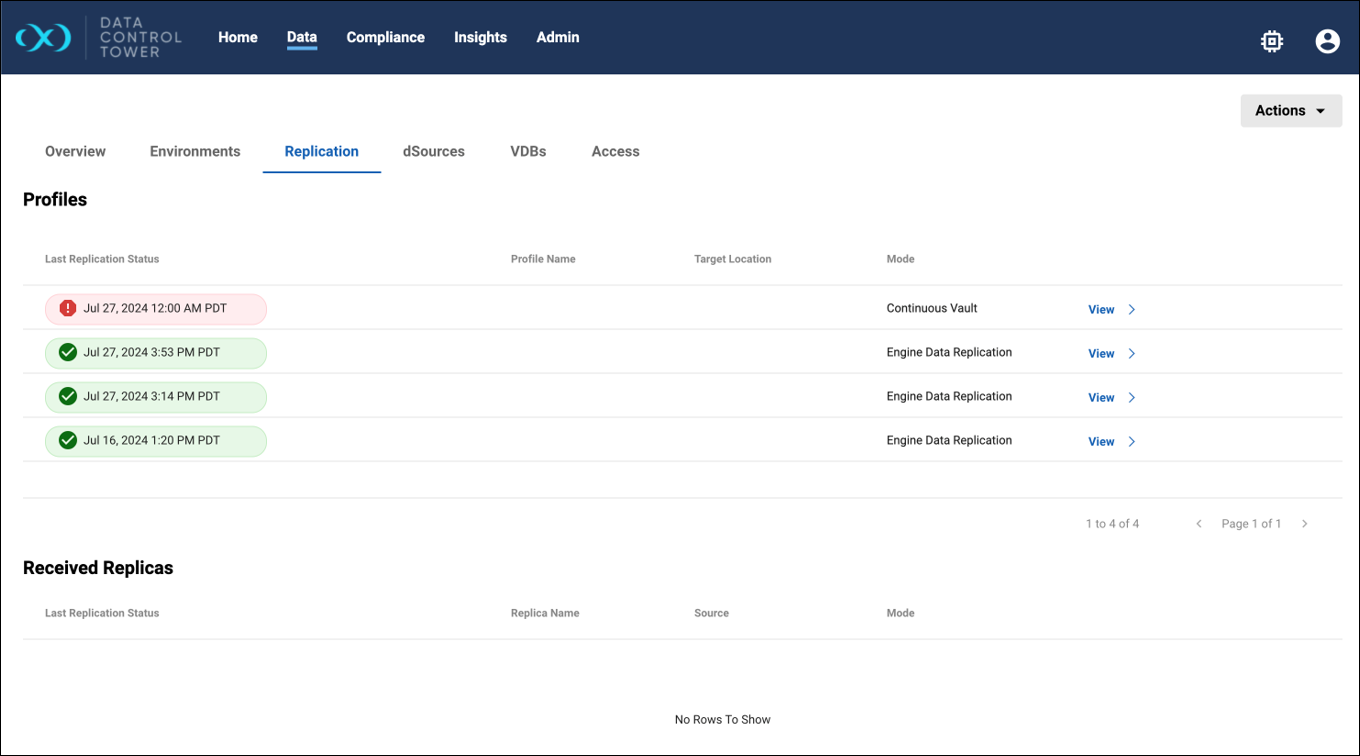

This feature allows users to view the list of replication policies associated with a particular engine, and is available by navigating to Data > Data Engines > Engine Details View > Replication tab.

Replica detail view

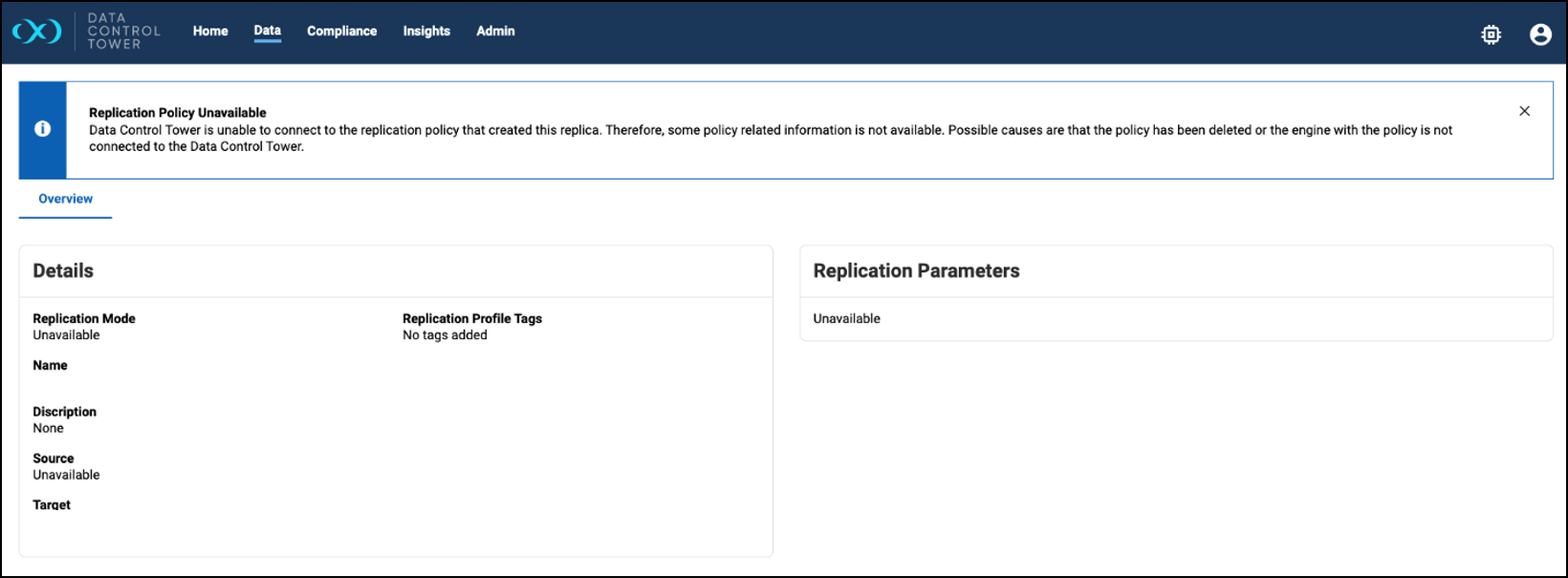

This feature allows users to see detailed information about a received replica. Use the View button available for each replica in the received replica list under Data > Data Engines > Engine Details View > Replication tab.In the Overview tab, details of the replica and its corresponding replication policy’s details are displayed. If the replication policy is not available on DCT, a banner is shown to indicate.

Failback support

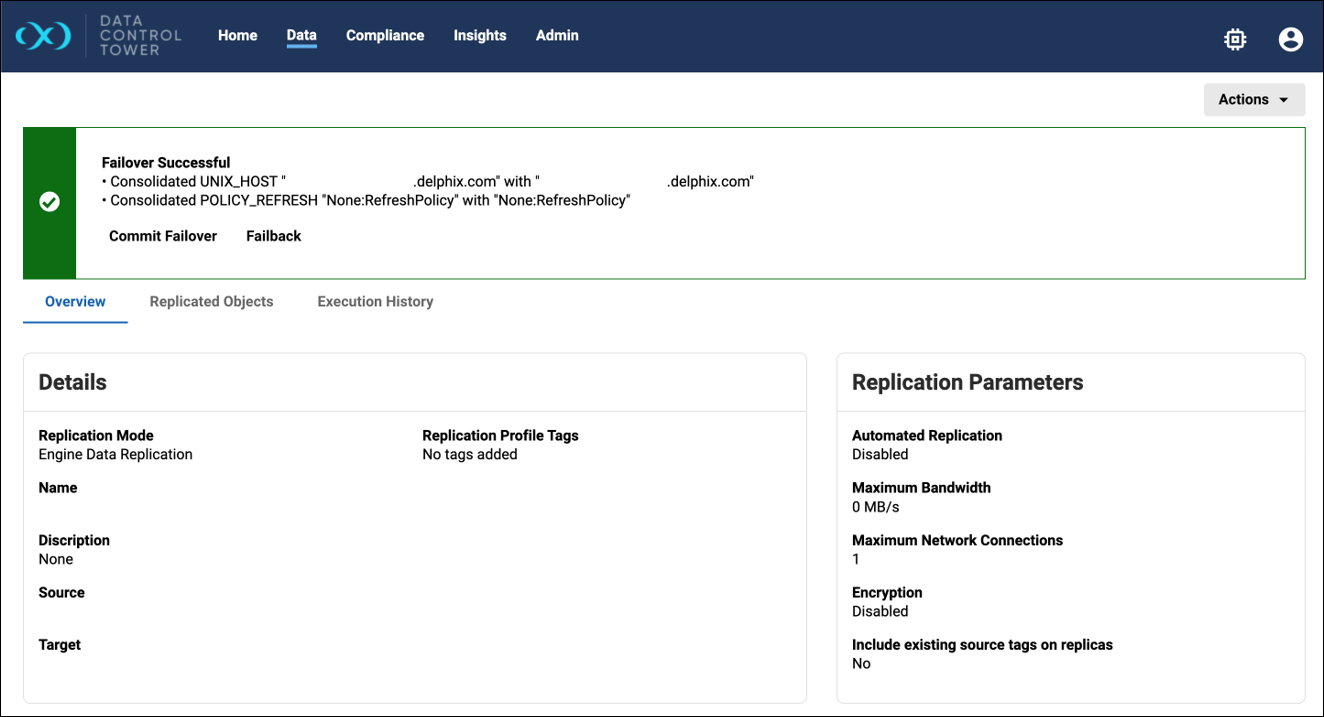

This is a new checkbox option for creating a failback replica during failover that can be launched from the Failover window at Data > Replication > Replication Policy or Replica Details View > Actions > Start Failover.
