Replication relationship

Overview

DCT 11.0 release adds a functionality to get the primary and replica objects for a given object in DCT. Whenever DCT identifies that a replica object has been added to the engine, it creates a job to fetch the primary object information from its source engine. In addition, when replica objects are updated with primary object information, the primary objects are also updated with their children (replicas).

This feature requires that both source and target engines are registered in DCT.

Prerequisites

A running instance of DCT, two instances of Delphix Engines, and some of the dSource and VDBs on one of those engines. A replication profile needs to be created from an engine that contains dSource and VDBs to replicate to another engine.

Replication details

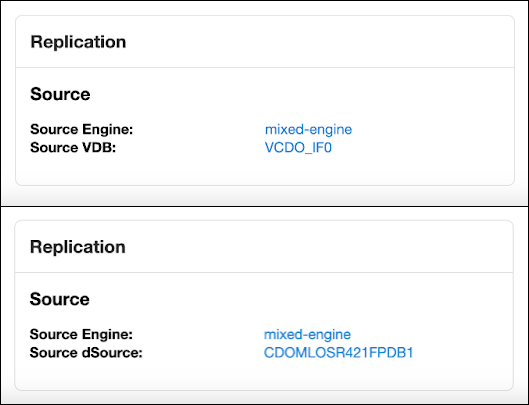

A replication details box will appear on the VDB or dSource tab showing the Source Engine and Source VDB/dSource for replication.

API changes

New fields have been added in the following APIs:

  • GET - /v3/dsources

  • GET - /v3/dsources/{dsourceId}

  • POST - /v3/dsources/search

  • GET - /v3/vdbs

  • GET - /v3/vdbs/{dsourceId}

  • POST - /v3/vdbs/search

The new fields are as follows:

  • primary_object_id

  • primary_engine_id

  • primary_engine_name

  • replicas

    • replica_id

    • replica_engine_id

    • replica_engine_name

    • replica_namespace_id

VDB replica and primary object sample response:

CODE
curl --location 'http://localhost:8080/v3/vdbs' \
--header 'Authorization: apk {{authToken}}'

{
    "items": [
        {
            "id": "1-ORACLE_DB_CONTAINER-11",
            "database_type": "Oracle",
            "name": "VCDO_IF0",
            "namespace_id": "1-NAMESPACE-2",
            "namespace_name": "ip-10-110-221-77-1",
            "is_replica": true,
            "is_locked": false,
            "database_version": "19.3.0.0.0",
            "size": 0,
            "storage_size": 2778624,
            "engine_id": "1",
            "masked": false,
            "content_type": "PDB",
            "parent_timeflow_timestamp": "2023-10-16T10:11:02Z",
            "parent_timeflow_timezone": "America/New_York,EDT-0400",
            "environment_id": "1-UNIX_HOST_ENVIRONMENT-3",
            "ip_address": "10.43.89.210",
            "fqdn": "ora-src.dcol1.delphix.com",
            "parent_id": "1-ORACLE_DB_CONTAINER-8",
            "parent_dsource_id": "1-ORACLE_DB_CONTAINER-8",
            "group_name": "Untitled",
            "engine_name": "e1",
            "cdb_id": "1-ORACLE_SINGLE_CONFIG-24",
            "creation_date": "2023-10-16T10:38:39.05Z",
            "hooks": {
                "pre_refresh": [],
                "post_refresh": [],
                "pre_self_refresh": [],
                "post_self_refresh": [],
                "pre_rollback": [],
                "post_rollback": [],
                "configure_clone": [],
                "pre_snapshot": [],
                "post_snapshot": [],
                "pre_start": [],
                "post_start": [],
                "pre_stop": [],
                "post_stop": []
            },
            "config_params": {
                "_cdb_disable_pdb_limit": "TRUE",
                "audit_file_dest": "'/u01/app/oracle/admin/CDOMLOSR421F/adump'",
                "audit_trail": "'DB'",
                "compatible": "'19.0.0'",
                "diagnostic_dest": "'/u01/app/oracle'",
                "dispatchers": "'(PROTOCOL=TCP) (SERVICE=CDOMLOSR421FXDB)'",
                "enable_pluggable_database": "TRUE",
                "log_archive_format": "'%t_%s_%r.dbf'",
                "max_pdbs": "4098",
                "memory_max_target": "1342177280",
                "memory_target": "1342177280",
                "nls_language": "'AMERICAN'",
                "nls_territory": "'AMERICA'",
                "open_cursors": "300",
                "processes": "300",
                "remote_login_passwordfile": "'EXCLUSIVE'"
            },
            "mount_point": "/mnt/provision",
            "current_timeflow_id": "1-ORACLE_TIMEFLOW-11",
            "vdb_restart": false,
            "is_appdata": false,
            "primary_object_id": "1-ORACLE_DB_CONTAINER-6",
            "primary_engine_id": "1",
            "primary_engine_name": "e1"
        },
        {
            "id": "1-ORACLE_DB_CONTAINER-6",
            "database_type": "Oracle",
            "name": "VCDO_IF0",
            "is_replica": false,
            "is_locked": false,
            "database_version": "19.3.0.0.0",
            "size": 794755072,
            "storage_size": 32859648,
            "engine_id": "1",
            "status": "RUNNING",
            "masked": false,
            "content_type": "PDB",
            "parent_timeflow_timestamp": "2023-10-16T10:11:02Z",
            "parent_timeflow_timezone": "America/New_York,EDT-0400",
            "environment_id": "1-UNIX_HOST_ENVIRONMENT-1",
            "ip_address": "10.43.89.210",
            "fqdn": "ora-src.dcol1.delphix.com",
            "parent_id": "1-ORACLE_DB_CONTAINER-2",
            "parent_dsource_id": "1-ORACLE_DB_CONTAINER-2",
            "group_name": "Untitled",
            "engine_name": "e1",
            "cdb_id": "1-ORACLE_SINGLE_CONFIG-2",
            "creation_date": "2023-10-16T10:38:39.05Z",
            "hooks": {
                "pre_refresh": [],
                "post_refresh": [],
                "pre_self_refresh": [],
                "post_self_refresh": [],
                "pre_rollback": [],
                "post_rollback": [],
                "configure_clone": [],
                "pre_snapshot": [],
                "post_snapshot": [],
                "pre_start": [],
                "post_start": [],
                "pre_stop": [],
                "post_stop": []
            },
            "config_params": {
                "_cdb_disable_pdb_limit": "TRUE",
                "audit_file_dest": "'/u01/app/oracle/admin/CDOMLOSR421F/adump'",
                "audit_trail": "'DB'",
                "compatible": "'19.0.0'",
                "diagnostic_dest": "'/u01/app/oracle'",
                "dispatchers": "'(PROTOCOL=TCP) (SERVICE=CDOMLOSR421FXDB)'",
                "enable_pluggable_database": "TRUE",
                "log_archive_format": "'%t_%s_%r.dbf'",
                "max_pdbs": "4098",
                "memory_max_target": "1342177280",
                "memory_target": "1342177280",
                "nls_language": "'AMERICAN'",
                "nls_territory": "'AMERICA'",
                "open_cursors": "300",
                "processes": "300",
                "remote_login_passwordfile": "'EXCLUSIVE'"
            },
            "mount_point": "/mnt/provision",
            "current_timeflow_id": "1-ORACLE_TIMEFLOW-6",
            "vdb_restart": false,
            "is_appdata": false,
            "replicas": [
                {
                    "replica_id": "1-ORACLE_DB_CONTAINER-11",
                    "replica_engine_id": "1",
                    "replica_engine_name": "e1",
                    "replica_namespace_id": "1-NAMESPACE-2"
                }
            ]
        }
    ],
    "response_metadata": {
        "total": 2
    }
}

Sample response for dSource change:

CODE
curl --location 'http://localhost:8080/v3/dsources/search' \
--header 'Content-Type: application/json' \
--header 'Authorization: apk {{authToken}}' \
--data '{
    "filter_expression" : "engine_id EQ '\''1'\''"
}'


{
    "items": [
        {
            "id": "1-ORACLE_DB_CONTAINER-10",
            "database_type": "Oracle",
            "name": "CDOMSHSR6706PDB2-NO-CHILD",
            "namespace_id": "1-NAMESPACE-2",
            "namespace_name": "ip-10-110-221-77-1",
            "is_replica": true,
            "database_version": "19.3.0.0.0",
            "content_type": "PDB",
            "data_uuid": "46f1613b223b1dd5364bdc3ecfd2755d",
            "storage_size": 180355584,
            "creation_date": "2023-10-16T10:09:00.567Z",
            "group_name": "Untitled",
            "engine_id": "1",
            "source_id": "1-ORACLE_PDB_CONFIG-20",
            "engine_name": "e1",
            "cdb_id": "1-ORACLE_SINGLE_CONFIG-23",
            "current_timeflow_id": "1-ORACLE_TIMEFLOW-7",
            "is_appdata": false,
            "primary_object_id": "1-ORACLE_DB_CONTAINER-4",
            "primary_engine_id": "1",
            "primary_engine_name": "e1"
        },
        {
            "id": "1-ORACLE_DB_CONTAINER-12",
            "database_type": "Oracle",
            "name": "CDOMLOSR421FPDB2",
            "is_replica": false,
            "database_version": "19.3.0.0.0",
            "content_type": "PDB",
            "data_uuid": "837bbc258a479ff86dbce5656beeba2a",
            "storage_size": 236433920,
            "creation_date": "2023-10-17T10:19:19.496Z",
            "group_name": "Untitled",
            "enabled": true,
            "engine_id": "1",
            "source_id": "1-ORACLE_PDB_CONFIG-7",
            "status": "RUNNING",
            "engine_name": "e1",
            "cdb_id": "1-ORACLE_SINGLE_CONFIG-2",
            "current_timeflow_id": "1-ORACLE_TIMEFLOW-12",
            "is_appdata": false
        },
        {
            "id": "1-ORACLE_DB_CONTAINER-2",
            "database_type": "Oracle",
            "name": "CDOMLOSR421FPDB1",
            "is_replica": false,
            "database_version": "19.3.0.0.0",
            "content_type": "PDB",
            "data_uuid": "834a794e51ec096059922dc06625fb66",
            "storage_size": 245758976,
            "creation_date": "2023-10-16T10:08:35.425Z",
            "group_name": "Untitled",
            "enabled": true,
            "engine_id": "1",
            "source_id": "1-ORACLE_PDB_CONFIG-6",
            "status": "RUNNING",
            "engine_name": "e1",
            "cdb_id": "1-ORACLE_SINGLE_CONFIG-2",
            "current_timeflow_id": "1-ORACLE_TIMEFLOW-2",
            "is_appdata": false,
            "replicas": [
                {
                    "replica_id": "1-ORACLE_DB_CONTAINER-8",
                    "replica_engine_id": "1",
                    "replica_engine_name": "e1",
                    "replica_namespace_id": "1-NAMESPACE-2"
                }
            ]
        },
        {
            "id": "1-ORACLE_DB_CONTAINER-21",
            "database_type": "Oracle",
            "name": "DSOURCE-WITH-CUSTOM-POLICY",
            "is_replica": false,
            "database_version": "19.3.0.0.0",
            "content_type": "PDB",
            "data_uuid": "dd4216e99ee17e8a7afa97cce012aa42",
            "storage_size": 181809664,
            "creation_date": "2023-10-18T13:09:30.299Z",
            "group_name": "Untitled",
            "enabled": true,
            "engine_id": "1",
            "source_id": "1-ORACLE_PDB_CONFIG-11",
            "status": "RUNNING",
            "engine_name": "e1",
            "cdb_id": "1-ORACLE_SINGLE_CONFIG-3",
            "current_timeflow_id": "1-ORACLE_TIMEFLOW-21",
            "is_appdata": false
        },
        {
            "id": "1-ORACLE_DB_CONTAINER-4",
            "database_type": "Oracle",
            "name": "CDOMSHSR6706PDB2-NO-CHILD",
            "is_replica": false,
            "database_version": "19.3.0.0.0",
            "content_type": "PDB",
            "data_uuid": "46f1613b223b1dd5364bdc3ecfd2755d",
            "storage_size": 190537728,
            "creation_date": "2023-10-16T10:09:00.567Z",
            "group_name": "Untitled",
            "enabled": true,
            "engine_id": "1",
            "source_id": "1-ORACLE_PDB_CONFIG-10",
            "status": "RUNNING",
            "engine_name": "e1",
            "cdb_id": "1-ORACLE_SINGLE_CONFIG-3",
            "current_timeflow_id": "1-ORACLE_TIMEFLOW-4",
            "is_appdata": false,
            "replicas": [
                {
                    "replica_id": "1-ORACLE_DB_CONTAINER-10",
                    "replica_engine_id": "1",
                    "replica_engine_name": "e1",
                    "replica_namespace_id": "1-NAMESPACE-2"
                }
            ]
        },
        {
            "id": "1-ORACLE_DB_CONTAINER-8",
            "database_type": "Oracle",
            "name": "CDOMLOSR421FPDB1",
            "namespace_id": "1-NAMESPACE-2",
            "namespace_name": "ip-10-110-221-77-1",
            "is_replica": true,
            "database_version": "19.3.0.0.0",
            "content_type": "PDB",
            "data_uuid": "834a794e51ec096059922dc06625fb66",
            "storage_size": 226567680,
            "creation_date": "2023-10-16T10:08:35.425Z",
            "group_name": "Untitled",
            "engine_id": "1",
            "source_id": "1-ORACLE_PDB_CONFIG-22",
            "engine_name": "e1",
            "cdb_id": "1-ORACLE_SINGLE_CONFIG-24",
            "current_timeflow_id": "1-ORACLE_TIMEFLOW-9",
            "is_appdata": false,
            "primary_object_id": "1-ORACLE_DB_CONTAINER-2",
            "primary_engine_id": "1",
            "primary_engine_name": "e1"
        }
    ],
    "response_metadata": {
        "total": 6
    }
}
